Rail & Transit Metal Stampings
Rolling stock and transit infrastructure run for decades on parts that cannot be serviced easily, so rail hardware is specified for corrosion resistance, vibration survival and repeatable fit. Precision metal stampings fill that role across the vehicle and the wayside: door and gangway hardware, grounding and power busbars, contact strips, cable and connector terminals, EMI shielding for signalling electronics, and the brackets and clips that hold interior and underframe systems in place.
- ISTAMPING produces these parts on 25-110 ton presses with 0.005 mm positioning accuracy from corrosion-resistant stainless, copper, brass, phosphor bronze and galvanized strip between 0.1 and 3.0 mm thick. Burr heights are held to 0.05 mm or less, flatness to 0.03 mm, and dies carry in-die feed and misfeed sensing so long production runs stay stable. Production is controlled under IATF 16949:2016 and ISO 9001 quality systems with lot traceability from incoming coil to finished stamping, and plating for corrosion or contact performance is managed through approved partner lines with salt-spray verification.
🔒 NDA Protected⚡ 2-Hour Quote Response📁 STEP, IGES, X_T, DWG
Trusted Tier-1 & OEM Standards:
CHALLENGES WE SOLVE
Rail & Transit Stamping Challenges & Our Solutions
ISTAMPING produces these parts on 25-110 ton presses with 0.005 mm positioning accuracy from corrosion-resistant stainless, copper, brass, phosphor bronze and galvanized strip between 0.1 and 3.0 mm thick. Burr heights are held to 0.05 mm or less, flatness to 0.03 mm, and dies carry in-die feed and misfeed sensing so long production runs stay stable. Production is controlled under IATF 16949:2016 and ISO 9001 quality systems with lot traceability from incoming coil to finished stamping, and plating for corrosion or contact performance is managed through approved partner lines with salt-spray verification.
01
Door & gangway hardware
The Challenge
Off-spec or inconsistent door & gangway hardware cause assembly failures and field returns.
Our Solution
Stamped latch plates, keepers, guide rollers brackets and hinge components for sliding and plug doors - formed from stainless or galvanized steel with tight flatness control so door mechanisms align and stay aligned through millions of cycles.
02
Grounding & power busbars
The Challenge
Unreliable supply of grounding & power busbars disrupts production schedules.
Our Solution
Stamped and formed copper busbars, shunt contacts and bonding straps for traction power and return-current paths - with selective plating on contact areas for stable, low-resistance joints in vibration-heavy service.
03
Connector and jumper terminals
The Challenge
Off-spec or inconsistent connector and jumper terminals cause assembly failures and field returns.
Our Solution
Precision stamped terminals, splice contacts and jumper strips for train control and inter-car wiring - held to ±0.005 mm positioning so mating faces stay aligned across long vehicle consists.
04
EMI/EMC shielding for signalling
The Challenge
Unreliable supply of emi/emc shielding for signalling disrupts production schedules.
Our Solution
Stamped shield cans and grounding fingers for signalling, communication and passenger information electronics - formed from copper alloys and plated steel with continuous contact geometry.
Need Rail & Transit Stampings That Meet Spec?
Send your drawing for a free DFM review and quote within 24 hours.
ENGINEERING CAPABILITIES
Rail & Transit Stamping Specifications & Equipment
Part Specifications
| Specification Parameter | Automotive & EV Standard | High-Precision Custom |
|---|---|---|
| Part Thickness | 0.10 mm – 3.0 mm | Per drawing |
| Standard Tolerance | ±0.025 mm (±0.001 in) | Tighter on critical features |
| Positioning Precision | 0.005 mm | — |
| Press Capacity | 25–110 tons (21 presses) | — |
Equipment
Aida High-Speed Presses
20 presses, 25–80T, up to 300 SPM with 0.005 mm positioning.

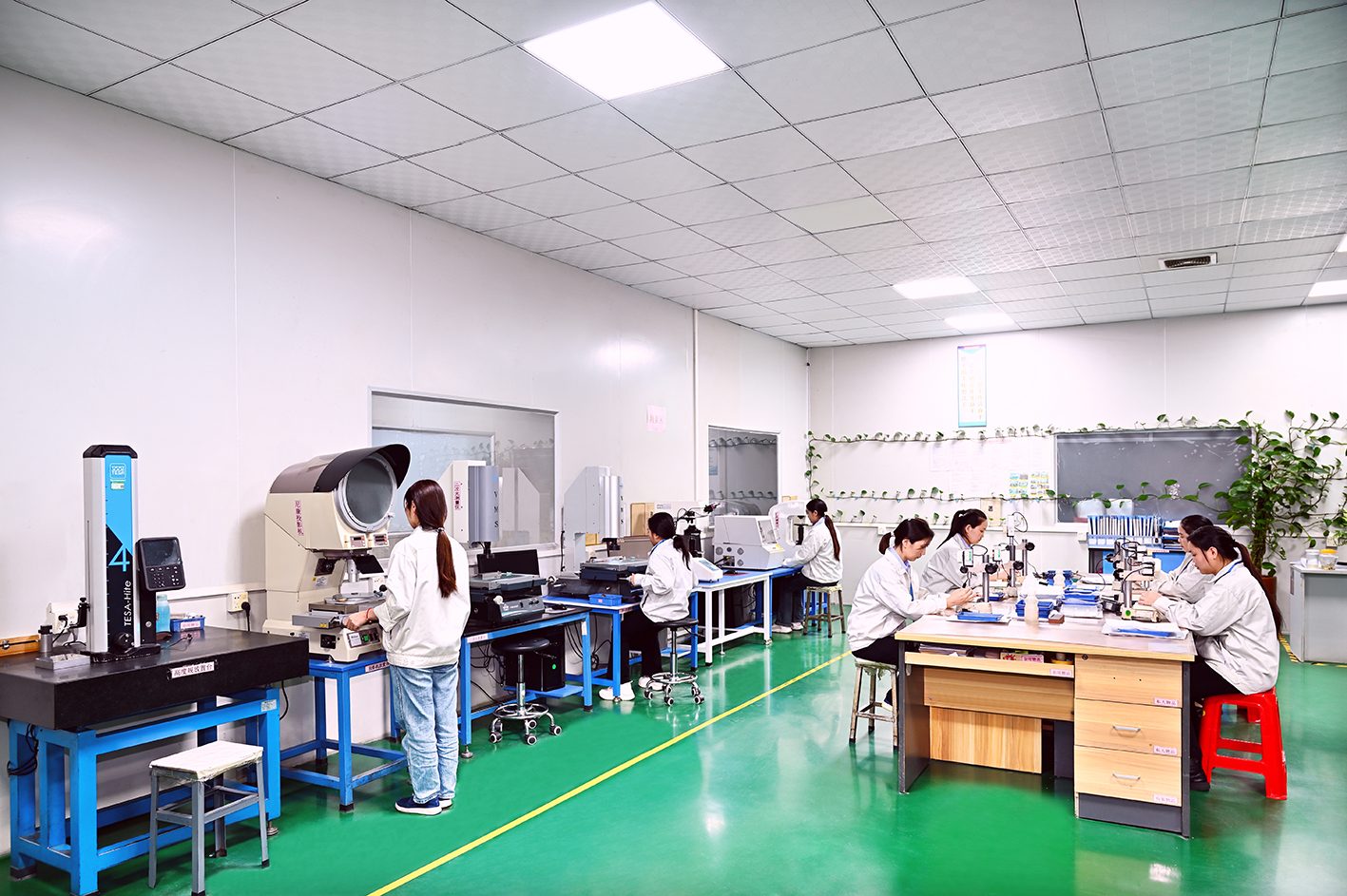

In-House Quality Lab
CMM, optical measurement and in-line vision systems verify critical features on every lot.
In-House Tool Room
Wire EDM, CNC machining and optical profile grinding keep die design and build in one loop.
Reel-to-Reel Plating
Selective gold (2-8 µm), tin and zinc (5-12 µm) plating through approved partner lines for corrosion and conductivity.
From Drawing to Production
DFM Review
Free design-for-manufacturability analysis within 24 hours.
Tooling
In-house die design, build and try-out.
Production
High-speed stamping with in-line vision inspection.
Delivery
QC, packaging and on-time shipment.
APPLICATION & INDUSTRY SOLUTIONS
Metal Stampings for Rail & Transit
Door & gangway hardware
Stamped latch plates, keepers, guide rollers brackets and hinge components for sliding and plug doors - formed from stainless or galvanized steel with tight flatness control so door mechanisms align and stay aligned through millions of cycles.
Grounding & power busbars
Stamped and formed copper busbars, shunt contacts and bonding straps for traction power and return-current paths - with selective plating on contact areas for stable, low-resistance joints in vibration-heavy service.
Connector and jumper terminals
Precision stamped terminals, splice contacts and jumper strips for train control and inter-car wiring - held to ±0.005 mm positioning so mating faces stay aligned across long vehicle consists.
EMI/EMC shielding for signalling
Stamped shield cans and grounding fingers for signalling, communication and passenger information electronics - formed from copper alloys and plated steel with continuous contact geometry.
Brackets, clips and mounting plates
Underframe brackets, cable clips, sensor mounts and interior mounting plates - stamped from galvanized or stainless strip in volume, with burr-free edges for safe handling and coated surfaces for long outdoor service.
Interior & seating hardware
Stamped seat frames clips, panel fasteners and trim retainers for passenger areas - cost-effective galvanized or stainless parts produced at high volume with consistent dimensional accuracy.
Corrosion-Resistant Stamping for Rolling Stock
Rail vehicles are built to serve for 30 years and more, and the stampings inside them are chosen for how they behave after a decade of vibration, humidity and cleaning chemicals. ISTAMPING produces rolling stock stampings from stainless steel, copper alloys and galvanized strip, with the flatness and burr control that keeps mechanisms moving and contacts conducting. Material certification and lot traceability come with every shipment, so fleet maintenance and reorder programs can rely on repeat parts rather than re-engineering.
- Stainless (SUS301/304/316L/430), copper, brass, phosphor bronze and galvanized strip from 0.1 to 3.0 mm
- Burr heights held to ≤0.05 mm and flatness to ≤0.03 mm for mechanism and contact parts
- Corrosion-protection finishes (zinc, passivation, nickel, tin) managed through approved partner lines with salt-spray verification
- Material certification and lot-level traceability on every shipment
High-Volume Stamping for Transit Programs
Transit programs combine large fleet volumes with long, slow-changing production windows, so the cost per part is won in the tool and the press line. Our progressive dies run at up to 300 strokes per minute with in-die sensing to catch mis-feeds before they scrap a coil, and a typical tool delivers 300,000 to 600,000 strokes between refurbishment. Because stamping, die-making and assembly answer to one IATF 16949:2016 quality system, transit builders and their tier suppliers deal with a single accountable partner from certified coil to packed part.
- Progressive dies running up to 300 SPM with in-die feed and misfeed monitoring
- Tooling built in-house with a typical 300,000-600,000 stroke life between refurbishment
- Feed width up to 650 mm and press capacity from 25 to 110 tons for larger brackets and busbars
- IATF 16949:2016 and ISO 9001 certified production with documented process control
Rail & Transit Applications
Door & gangway hardware
Stamped latch plates, keepers, guide rollers brackets and hinge components for sliding and plug doors - formed from stainless or galvanized steel with tight flatness control so door mechanisms align and stay aligned through millions of cycles.
Grounding & power busbars
Stamped and formed copper busbars, shunt contacts and bonding straps for traction power and return-current paths - with selective plating on contact areas for stable, low-resistance joints in vibration-heavy service.
Connector and jumper terminals
Precision stamped terminals, splice contacts and jumper strips for train control and inter-car wiring - held to ±0.005 mm positioning so mating faces stay aligned across long vehicle consists.
EMI/EMC shielding for signalling
Stamped shield cans and grounding fingers for signalling, communication and passenger information electronics - formed from copper alloys and plated steel with continuous contact geometry.
Brackets, clips and mounting plates
Underframe brackets, cable clips, sensor mounts and interior mounting plates - stamped from galvanized or stainless strip in volume, with burr-free edges for safe handling and coated surfaces for long outdoor service.
Interior & seating hardware
Stamped seat frames clips, panel fasteners and trim retainers for passenger areas - cost-effective galvanized or stainless parts produced at high volume with consistent dimensional accuracy.
Related Guides
MATERIALS & COMPLIANCE
Materials for Rail & Transit Applications
Material certifications and compliance documents available on every lot.
Brass
Common Alloys
Finishing
Copper
Common Alloys
Finishing
Phosphor Bronze
Common Alloys
Finishing
Need a Specific Alloy or Coating?
Tell us the material grade and finish — we confirm availability and certification before quoting.
🔒 MTC / CoC / RoHS available per lot
DFM & ENGINEERING SUPPORT
Design for Manufacturability for Rail & Transit
We review material, tolerance, bend and volume economics before tooling starts.
What We Review
Door & gangway hardware geometry
Feasibility of door & gangway hardware — material formability, bend radii, tolerance stack-up and plating compatibility.
Grounding & power busbars geometry
Feasibility of grounding & power busbars — material formability, bend radii, tolerance stack-up and plating compatibility.
Connector and jumper terminals geometry
Feasibility of connector and jumper terminals — material formability, bend radii, tolerance stack-up and plating compatibility.
EMI/EMC shielding for signalling geometry
Feasibility of emi/emc shielding for signalling — material formability, bend radii, tolerance stack-up and plating compatibility.
DFM to Production
Submit Drawing
STEP / IGES / DWG / PDF with quantity and material.
24H DFM Feedback
Cost-down suggestions and feasibility confirmation.
Tooling & Samples
In-house die build with first-article inspection.
Mass Production
High-speed stamping with SPC and PPAP documentation.
Get a Free DFM Review
Send your drawing — receive feasibility feedback and a quote within 24 hours.
STEP / IGES / X_T / DWG / PDF
QUALITY ASSURANCE & INSPECTION

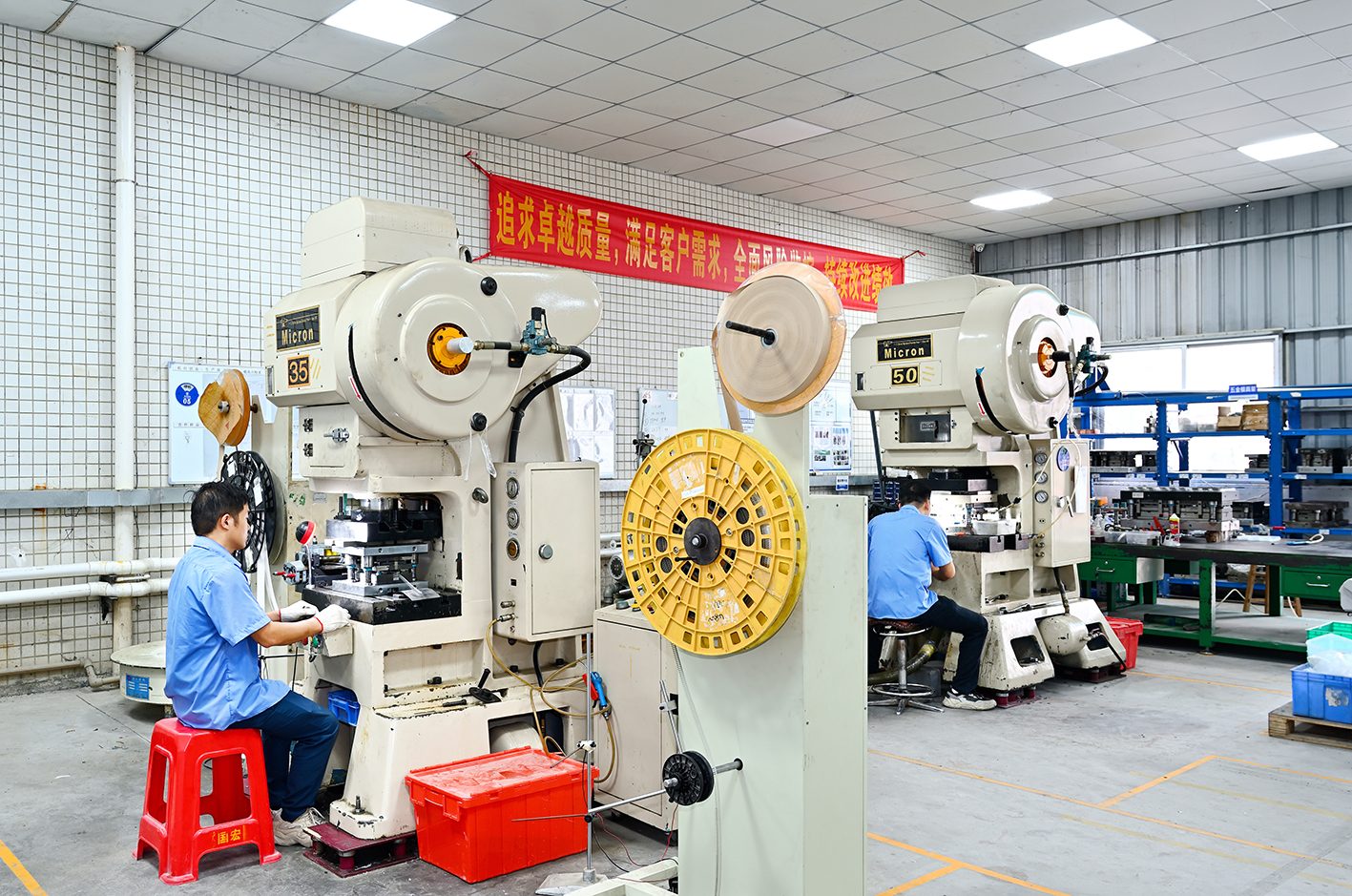

IATF 16949:2016 Certified, Verified on Every Lot
CMM, optical measurement and in-line vision inspection at press speed.
🔬 Inspection HardwareIn-House Quality Lab
- CMM & optical measurement for flat and 3D parts
- In-line vision systems inspecting at press speed
- SPC on critical features to catch drift as a trend
🎯 Quality StandardsIATF 16949:2016 Certified
- IATF 16949:2016 automotive quality management
- ISO 14001:2015 environmental management
- PPAP documentation for automotive & EV programs
📜 TraceabilityFull Lot Traceability
- First-article inspection against the drawing
- Lot-level material traceability back to the coil
- Inspection records on every shipment
Download Sample Quality Control & Inspection Reports
Review our standard CMM inspection sheet, Material Composition Certificate, and RoHS report templates.
CASE STUDIES
Rail & Transit Case Studies
EV Battery · Case Study
EV Busbar Case Study: Battery Pack Interconnects
High-volume busbar stamping for EV battery pack interconnects — tolerance, plating and delivery evidence.
Automotive · Case Study
Progressive Die Case Study: Automotive Terminal Program
A multi-million-piece terminal program run on progressive dies with SPC and PPAP evidence.
ORDERING PROCESS & FREQUENTLY ASKED QUESTIONS
How to Order Rail & Transit Stampings & Frequently Asked Questions
📁 Step 1
Submit CAD & Specs
Send 2D/3D drawings (STEP, DWG, PDF) with quantity, material, and tolerance requirements.
⏱️ Step 2
24H DFM & Quotation
Our engineering team conducts DFM analysis and provides a competitive quote within 24 hours.
⚙️ Step 3
Precision Manufacturing
High-speed progressive die stamping, secondary forming, finishing, and surface treatment per your specifications.
✈️ Step 4
100% QC & Express Shipping
100% dimensional inspection, anti-corrosion packaging, and global express delivery.
What is the MOQ for Rail & Transit metal stampings?
We support prototyping from 1 piece and mass production from roughly 100k pieces upward, depending on tooling economics.
Ready to Start Your Precision Stamping Program?
Send your drawing today for a free DFM review and detailed quotation within 24 hours.
🔒 100% Confidential | NDA Protected | 24H Response
RELATED INDUSTRIES
Related Industries
Aerospace
Aerospace metal stamping for EMI shields, connector terminals and precision brackets - material certifications, lot traceability and documented process controls on every shipment, from 25-110 ton high-speed progressive dies.
Explore Industry →

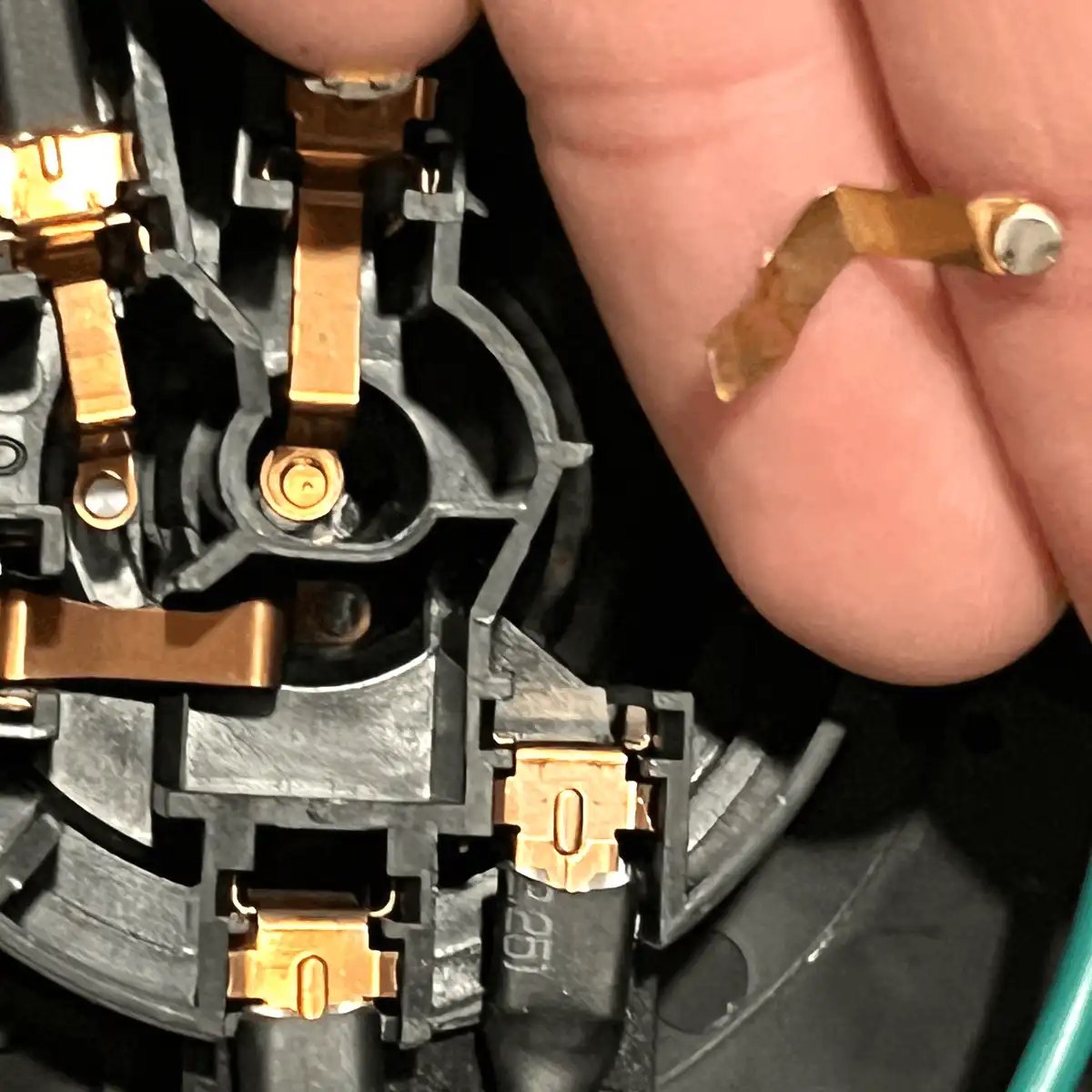

Appliance
